| Quantity | Unit price |
|---|---|
| 1–29 | $12.94 |
| 30–59 | $7.9805 |
| 60–119 | $7.3914 |
| 120–509 | $6.8963 |
| 510+ | $6.4418 |
Need more than the quantities above? Request a bulk quote
We source this item through our supplier network and do not hold inventory. Price and availability are confirmed with you before any order is accepted.
Questions about this part? Talk to us.
Phone +1 872 293 4196 · Email supply@allchipsupply.com
Location: USA · Shipping: Worldwide Shipping

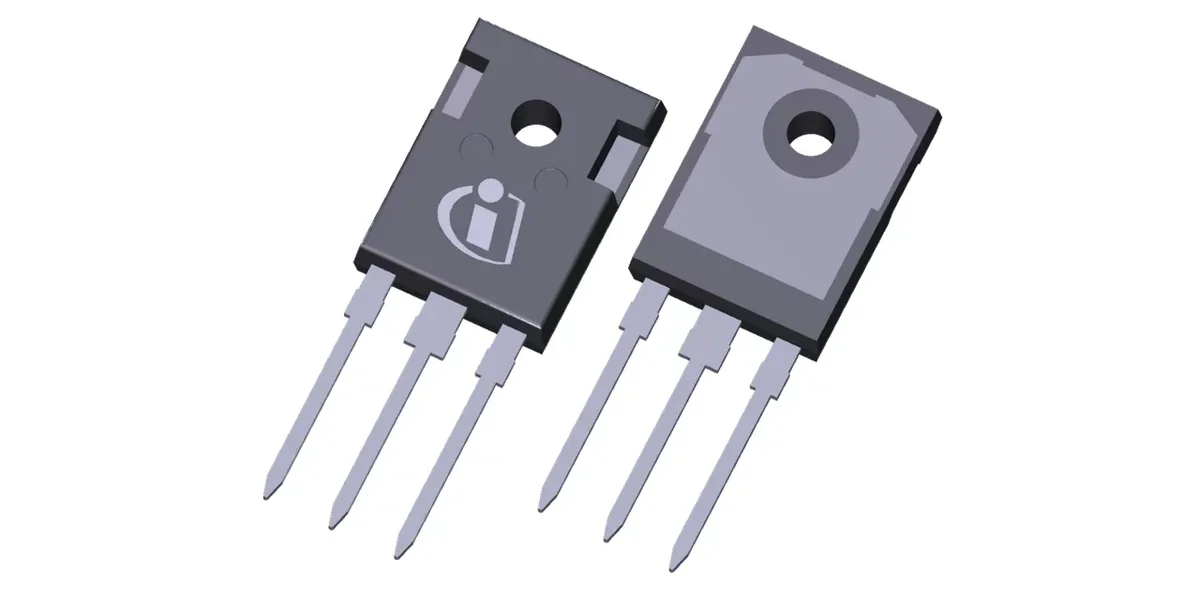

A 1200 V CoolSiC trench MOSFET in a TO-247-3 package with 30 mΩ typical on-resistance. Silicon carbide switching lowers losses in EV chargers, solar inverters and industrial power supplies compared with silicon IGBTs.
| VDSS | 1200 V |
|---|---|
| RDS(on) typ | 30 mΩ (VGS = 18 V) |
| ID (25 °C) | 56 A |
| Technology | CoolSiC MOSFET M1H |
| Package | TO-247-3 |
| Gate drive | Recommended +15 to +18 V / 0 V |
Specifications are summarized from manufacturer and listing information; confirm against the manufacturer datasheet before purchase.
