| Quantity | Unit price |
|---|---|
| 1–11 | $199.00 |
| 12+ | $184.11 |
Need more than the quantities above? Request a bulk quote
We source this item through our supplier network and do not hold inventory. Price and availability are confirmed with you before any order is accepted.
Questions about this part? Talk to us.
Phone +1 872 293 4196 · Email supply@allchipsupply.com
Location: USA · Shipping: Worldwide Shipping

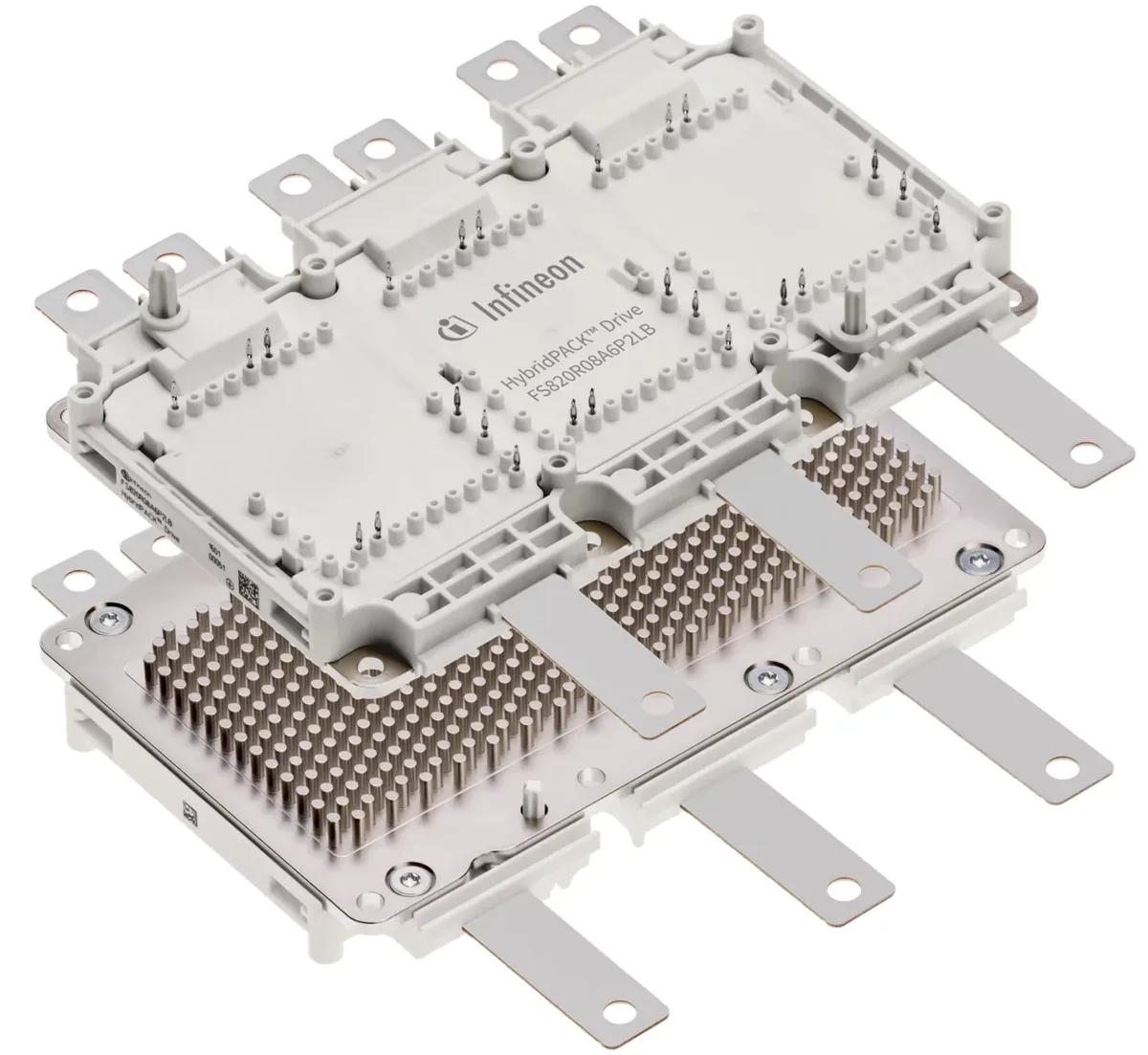

A HybridPACK Drive six-pack power module for electric-vehicle traction inverters, using Infineon's EDT2 automotive IGBT technology. The pin-fin baseplate is designed for direct liquid cooling. Qualified for automotive use.
| Configuration | Six-pack (3-phase bridge) |
|---|---|
| VCES | 750 V |
| IC nom | 820 A |
| Technology | EDT2 IGBT |
| Package | HybridPACK Drive, PinFin baseplate |
| Application | EV / HEV traction inverter |
Specifications are summarized from manufacturer and listing information; confirm against the manufacturer datasheet before purchase.
