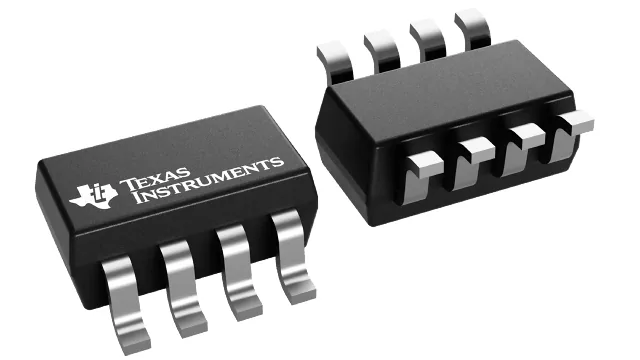

Representative image of the package/family
| Quantity | Unit price |
|---|---|
| 1–9 | $1.58 |
| 10–24 | $1.1634 |
| 25–99 | $1.0601 |
| 100–249 | $0.9467 |
| 250–499 | $0.8926 |
| 500+ | $0.8628 |
Need more than the quantities above? Request a bulk quote
We source this item through our supplier network and do not hold inventory. Price and availability are confirmed with you before any order is accepted.
Questions about this part? Talk to us.
Phone +1 872 293 4196 · Email supply@allchipsupply.com
Location: USA · Shipping: Worldwide Shipping
A digital current-shunt and power monitor with an I2C interface, reporting shunt voltage, bus voltage, current and power. It works on buses up to 26 V and is common in battery systems, servers and embedded power telemetry. SOT-23-8 package.
| Common-mode range | 0-26 V |
|---|---|
| ADC | 12-bit |
| Measurements | Shunt voltage, bus voltage, current, power |
| Accuracy | ±0.5% max (A grade) |
| Interface | I2C / SMBus, 16 addresses |
| Package | SOT-23-8 |
Specifications are summarized from manufacturer and listing information; confirm against the manufacturer datasheet before purchase.
