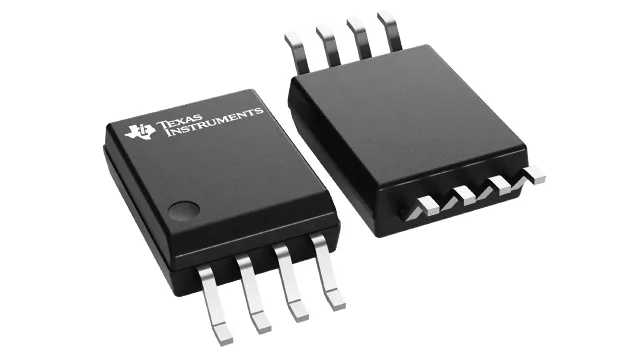

Representative image of the package/family
Buying in volume? Request a bulk quote
We source this item through our supplier network and do not hold inventory. Price and availability are confirmed with you before any order is accepted.
Questions about this part? Talk to us.
Phone +1 872 293 4196 · Email supply@allchipsupply.com
Location: USA · Shipping: Worldwide Shipping
A precision isolated amplifier for shunt-based current measurement across an isolation barrier. It is used in motor drives, inverters and power supplies to measure phase current safely. Stretched SOIC-8 package with 8.5 mm creepage.
| Input range | ±250 mV |
|---|---|
| Gain | 8.2 |
| Isolation | Reinforced, 7000 VPK |
| Offset drift | ±3 µV/°C max |
| Bandwidth | 200 kHz |
| Package | SOIC-8 wide (DWV) |
Specifications are summarized from manufacturer and listing information; confirm against the manufacturer datasheet before purchase.
