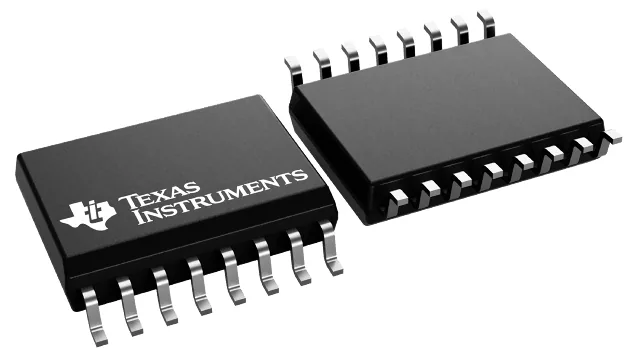

Representative image of the package/family
| Quantity | Unit price |
|---|---|
| 1–9 | $2.49 |
| 10–24 | $1.8725 |
| 25–99 | $1.7178 |
| 100–249 | $1.5482 |
| 250–499 | $1.4673 |
| 500+ | $1.4512 |
Need more than the quantities above? Request a bulk quote
We source this item through our supplier network and do not hold inventory. Price and availability are confirmed with you before any order is accepted.
Questions about this part? Talk to us.
Phone +1 872 293 4196 · Email supply@allchipsupply.com
Location: USA · Shipping: Worldwide Shipping
A quad-channel reinforced digital isolator with three forward and one reverse channel, rated 5000 VRMS. It isolates SPI, UART and other digital signals in industrial automation, motor drives and power supplies. Wide-body SOIC-16.
| Channels | 4 (3 forward / 1 reverse) |
|---|---|
| Isolation rating | 5000 VRMS (reinforced) |
| Data rate | Up to 100 Mbps |
| CMTI | ±100 kV/µs (typ) |
| Supply | 2.25-5.5 V |
| Package | SOIC-16 wide body (DW) |
Specifications are summarized from manufacturer and listing information; confirm against the manufacturer datasheet before purchase.
