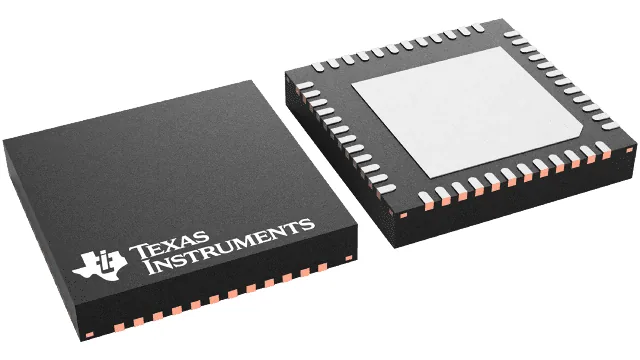

Representative image of the package/family
| Quantity | Unit price |
|---|---|
| 1–9 | $4.63 |
| 10–24 | $3.5609 |
| 25–99 | $3.2928 |
| 100–249 | $2.9981 |
| 250+ | $2.897 |
Need more than the quantities above? Request a bulk quote
We source this item through our supplier network and do not hold inventory. Price and availability are confirmed with you before any order is accepted.
Questions about this part? Talk to us.
Phone +1 872 293 4196 · Email supply@allchipsupply.com
Location: USA · Shipping: Worldwide Shipping
A single-chip PMIC designed to power TI's AM335x Sitara processors, including the setup used on BeagleBone boards. It combines three DC-DC converters, four LDOs, a linear battery charger and power sequencing. VQFN-48 package.
| Regulators | 3x DC-DC buck, 4x LDO (incl. load switches) |
|---|---|
| Battery charger | Linear Li-ion/Li-polymer, up to 700 mA |
| Inputs | USB and AC adapter |
| Interface | I2C |
| Target processor | AM335x Sitara |
| Package | VQFN-48 (6x6 mm) |
Specifications are summarized from manufacturer and listing information; confirm against the manufacturer datasheet before purchase.
