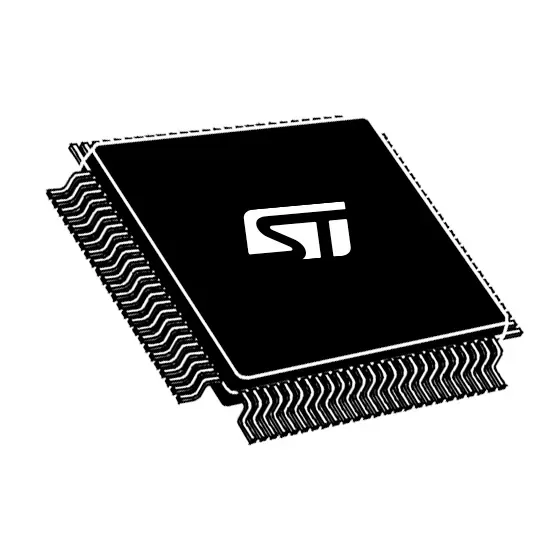

Representative image of the package/family
| Quantity | Unit price |
|---|---|
| 1–9 | $10.25 |
| 10–23 | $8.0605 |
| 24–89 | $7.5352 |
| 90–269 | $6.9506 |
| 270–449 | $6.6052 |
| 450+ | $6.4775 |
Need more than the quantities above? Request a bulk quote
We source this item through our supplier network and do not hold inventory. Price and availability are confirmed with you before any order is accepted.
Questions about this part? Talk to us.
Phone +1 872 293 4196 · Email supply@allchipsupply.com
Location: USA · Shipping: Worldwide Shipping
The STM32F407VGT6 is a high-performance STM32F4 microcontroller from STMicroelectronics with an Arm Cortex-M4 core and floating-point unit running at up to 168 MHz. It has 1 MB of Flash and 192 KB of SRAM in an LQFP-100 package (14x14 mm) with 82 I/O pins.
Connectivity includes Ethernet, USB OTG, CAN, I2C, SPI, UART/USART and I2S. The analog side offers a 16-channel 12-bit ADC and two 12-bit DACs. It runs from 1.8 to 3.6 V and is rated from -40 to 85 °C. The STM32F407 is widely used in industrial control, audio, motor control and connected devices, and it is supported by ST's STM32Cube tools.
| Core | Arm Cortex-M4 with FPU, 168 MHz |
|---|---|
| Flash | 1 MB |
| SRAM | 192 KB |
| Package | LQFP-100 (14x14 mm) |
| Supply | 1.8–3.6 V |
| I/O | 82 |
| Connectivity | Ethernet, USB OTG, CAN, I2C, SPI, UART/USART, I2S |
| Analog | 16-ch 12-bit ADC, 2x 12-bit DAC |
| Temperature | -40 to 85 °C |
Specifications are summarized from manufacturer and listing information; confirm against the manufacturer datasheet before purchase.
