Representative image of the package/family
| Quantity | Unit price |
|---|---|
| 1–9 | $5.67 |
| 10–24 | $4.21 |
| 25–99 | $3.84 |
| 100+ | $3.51 |
Need more than the quantities above? Request a bulk quote
We source this item through our supplier network and do not hold inventory. Price and availability are confirmed with you before any order is accepted.
Questions about this part? Talk to us.
Phone +1 872 293 4196 · Email supply@allchipsupply.com
Location: USA · Shipping: Worldwide Shipping

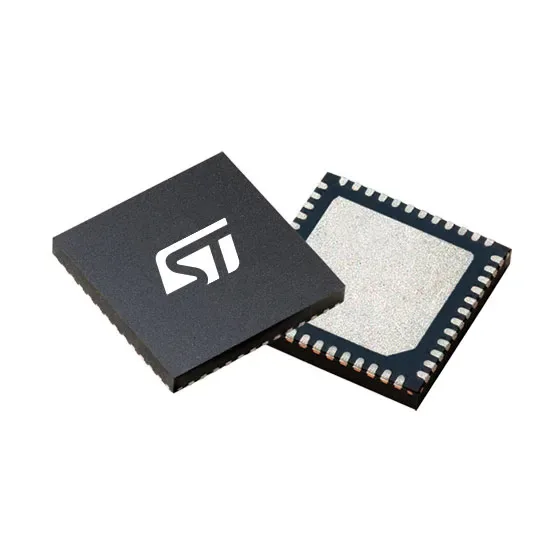

The STM32F411CEU6 is a low-power STM32F4 microcontroller from STMicroelectronics, part of ST's Dynamic Efficiency line. It has an Arm Cortex-M4 core with FPU running at 100 MHz, 512 KB of Flash and 128 KB of SRAM in a 7x7 mm UFQFPN-48 package.
Connectivity includes USB 2.0 OTG full-speed, three I2C, five SPI/I2S, three USARTs and SDIO, and the analog side offers a 16-channel 12-bit ADC. It runs from 1.7 to 3.6 V and is rated from -40 to 85 °C. Its small package and USB support make it popular in compact embedded designs and development boards. It is supported by ST's STM32Cube ecosystem.
| Core | Arm Cortex-M4 with FPU, 100 MHz |
|---|---|
| Flash | 512 KB |
| SRAM | 128 KB |
| Package | UFQFPN-48 (7x7 mm) |
| Supply | 1.7-3.6 V |
| Connectivity | USB 2.0 OTG FS, 3x I2C, 5x SPI/I2S, 3x USART, SDIO |
| Analog | 12-bit ADC, 16 channels |
| Temperature | -40 to 85 °C |
Specifications are summarized from manufacturer and listing information; confirm against the manufacturer datasheet before purchase.
Manufacturer datasheet / product page (opens the manufacturer's website)
