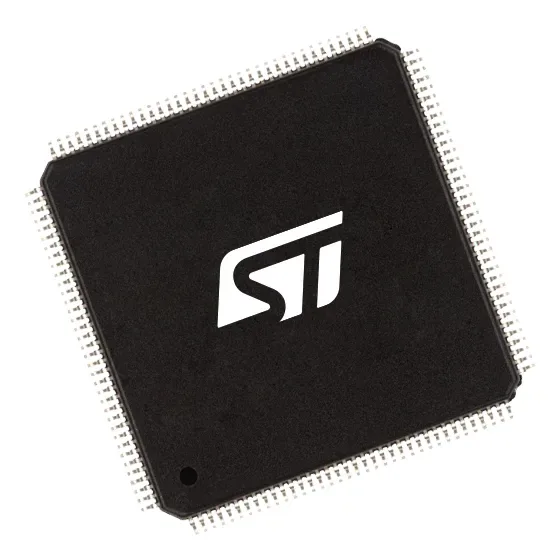

STMicroelectronics STM32H743ZIT6 Arm Cortex-M7 480 MHz MCU

MPN: STM32H743ZIT6
Family: STM32H7
Category: Microcontrollers
Condition: New

$11.95 / unit

Price checked: Oct 8, 2026

Prices and availability may change without notice.

Available from supplier

Quantity pricing (per unit)
Quantity	Unit price
1–9	$11.95
10–24	$9.46
25–99	$8.82
100+	$8.17

Need more than the quantities above? Request a bulk quote

We source this item through our supplier network and do not hold inventory. Price and availability are confirmed with you before any order is accepted.

Questions about this part? Talk to us.

Phone +1 872 293 4196 · Email supply@allchipsupply.com
Location: USA · Shipping: Worldwide Shipping

Description

The STM32H743ZIT6 is one of the fastest STM32 microcontrollers, with an Arm Cortex-M7 core and double-precision FPU running at 480 MHz. It has 2 MB of dual-bank Flash and 1 MB of SRAM in an LQFP-144 package (20x20 mm).

Connectivity includes Ethernet, USB OTG high-speed and full-speed, two FDCAN controllers and Octo/Quad-SPI for external memory. The analog side offers three 16-bit ADCs and two 12-bit DACs. It runs from 1.62 to 3.6 V and is rated from -40 to 85 °C. It is used in motor control, audio processing, industrial gateways and edge AI designs that need high processing headroom. Dual-bank Flash supports firmware updates while running.

Key specs

Core: Arm Cortex-M7 with DP-FPU, 480 MHz
Flash: 2 MB (dual bank)
SRAM: 1 MB
Package: LQFP-144 (20x20 mm)
Supply: 1.62-3.6 V

Specifications

Core	Arm Cortex-M7 with DP-FPU, 480 MHz
Flash	2 MB (dual bank)
SRAM	1 MB
Package	LQFP-144 (20x20 mm)
Supply	1.62-3.6 V
Connectivity	Ethernet, USB OTG HS/FS, 2x FDCAN, Octo/Quad-SPI
Analog	3x 16-bit ADC, 2x 12-bit DAC
Temperature	-40 to 85 °C
