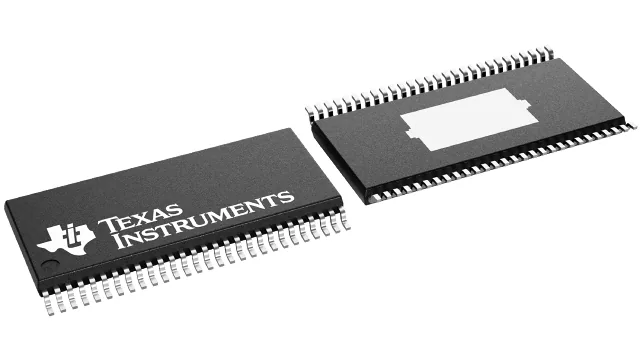

Representative image of the package/family
| Quantity | Unit price |
|---|---|
| 1–9 | $6.11 |
| 10–24 | $4.7327 |
| 25–99 | $4.3876 |
| 100–249 | $4.0087 |
| 250–999 | $3.9121 |
| 1,000+ | $3.6907 |
Need more than the quantities above? Request a bulk quote
We source this item through our supplier network and do not hold inventory. Price and availability are confirmed with you before any order is accepted.
Questions about this part? Talk to us.
Phone +1 872 293 4196 · Email supply@allchipsupply.com
Location: USA · Shipping: Worldwide Shipping
A three-phase pre-driver for brushless motor inverters, with dual current-shunt amplifiers and a built-in 1.5 A buck regulator. It drives external N-channel MOSFETs and is used in e-bikes, drones, pumps and power tools. HTSSOP-56 package.
| Motor type | 3-phase BLDC / PMSM |
|---|---|
| Supply | 6-60 V |
| Gate drive | 2.3 A sink / 1.7 A source |
| Current sense | 2x shunt amplifiers |
| Integrated regulator | 1.5 A buck converter |
| Interface | SPI |
| Package | HTSSOP-56 PowerPAD |
Specifications are summarized from manufacturer and listing information; confirm against the manufacturer datasheet before purchase.
