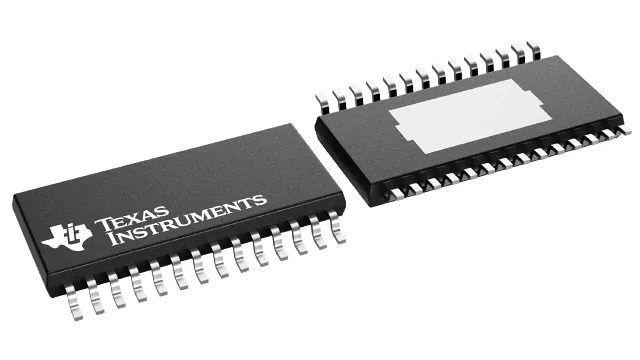

Representative image of the package/family
| Quantity | Unit price |
|---|---|
| 1–9 | $2.70 |
| 10–24 | $2.0321 |
| 25–99 | $1.8662 |
| 100–249 | $1.6842 |
| 250–499 | $1.5974 |
| 500+ | $1.5851 |
Need more than the quantities above? Request a bulk quote
We source this item through our supplier network and do not hold inventory. Price and availability are confirmed with you before any order is accepted.
Questions about this part? Talk to us.
Phone +1 872 293 4196 · Email supply@allchipsupply.com
Location: USA · Shipping: Worldwide Shipping
A bipolar stepper motor driver with integrated MOSFETs and a simple STEP/DIR interface. It supports up to 1/32 microstepping and is widely used in 3D printers, CNC machines and lab automation. HTSSOP-28 package with exposed pad.
| Motor type | Bipolar stepper |
|---|---|
| Supply | 8.2-45 V |
| Output current | 2.5 A full-scale (with heatsinking) |
| Microstepping | Up to 1/32 |
| Interface | STEP/DIR |
| Protections | Overcurrent, thermal, UVLO |
| Package | HTSSOP-28 PowerPAD |
Specifications are summarized from manufacturer and listing information; confirm against the manufacturer datasheet before purchase.
