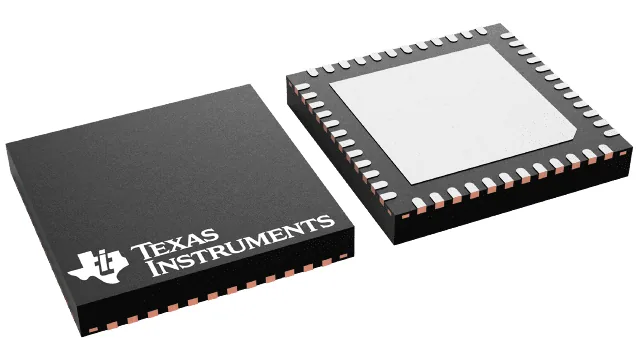

Representative image of the package/family
| Quantity | Unit price |
|---|---|
| 1–9 | $3.07 |
| 10–24 | $2.33 |
| 25–99 | $2.1445 |
| 100–249 | $1.9397 |
| 250–499 | $1.842 |
| 500+ | $1.8378 |
Need more than the quantities above? Request a bulk quote
We source this item through our supplier network and do not hold inventory. Price and availability are confirmed with you before any order is accepted.
Questions about this part? Talk to us.
Phone +1 872 293 4196 · Email supply@allchipsupply.com
Location: USA · Shipping: Worldwide Shipping
A three-phase smart gate driver for BLDC motor control with adjustable gate-drive strength, three current-sense amplifiers and an integrated buck regulator. It simplifies compact motor controllers for drones, robotics and industrial pumps. SPI variant in VQFN-48.
| Motor type | 3-phase BLDC / PMSM |
|---|---|
| Supply | 6-60 V |
| Gate drive | Smart Gate Drive, adjustable up to 1 A / 2 A |
| Current sense | 3x shunt amplifiers |
| Integrated regulator | 600 mA buck |
| Interface | SPI |
| Package | VQFN-48 (7x7 mm) |
Specifications are summarized from manufacturer and listing information; confirm against the manufacturer datasheet before purchase.
